Pier and Beam Repair in Chattanooga

What Pier and Beam Repair Addresses

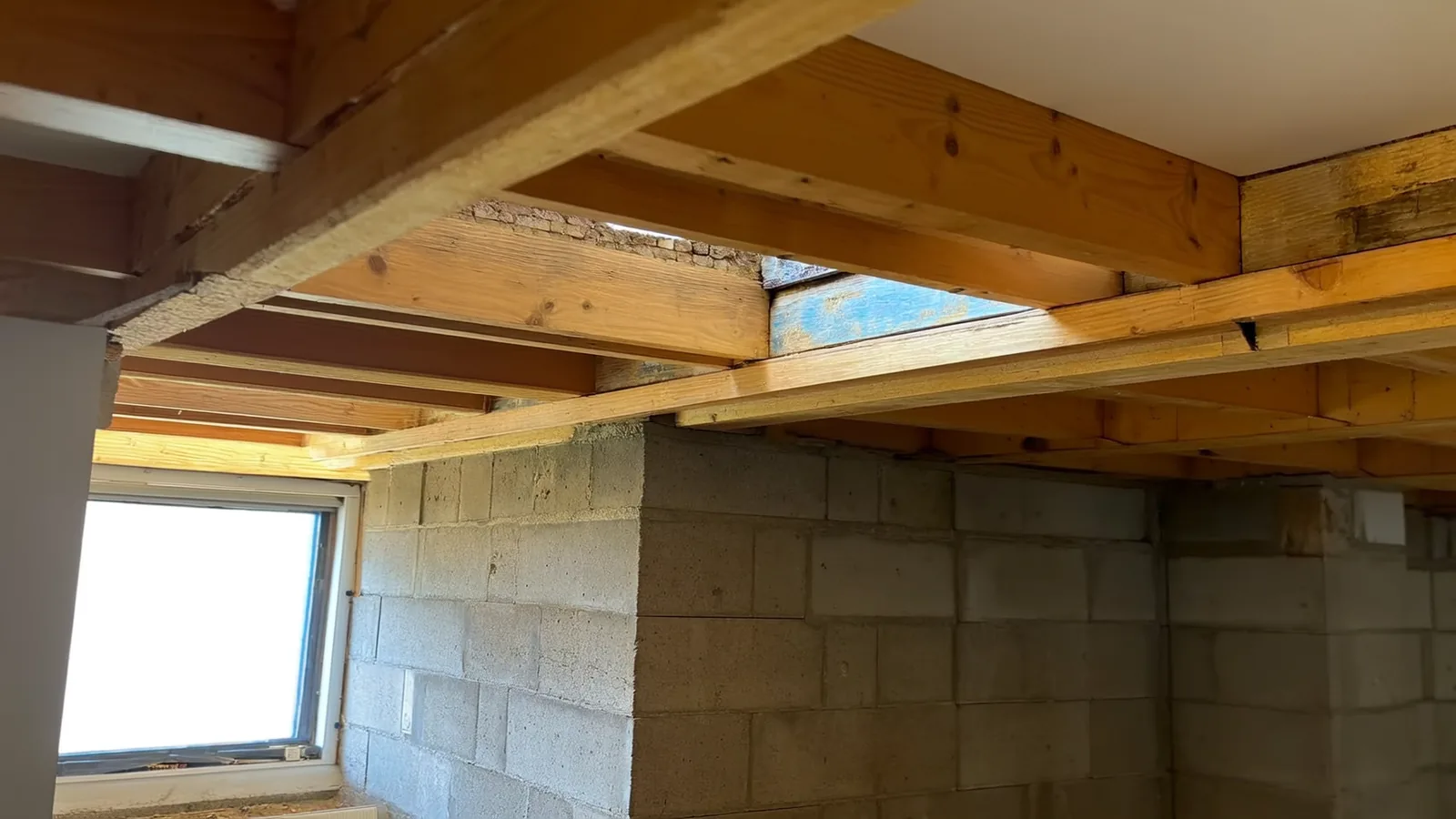

A pier and beam foundation consists of three structural layers: masonry piers (concrete blocks or poured columns) anchored in the ground at regular spacing, large wood beams running horizontally across the piers, and floor joists running perpendicular to the beams to support the subfloor above. The home rests on this system with a ventilated crawlspace between the joists and the soil below.

Each layer can fail in distinct ways, and repair work is targeted at whichever components are showing problems. A reliable crawlspace inspection documents the condition of every pier, beam, joist, and crawl-floor area, then a method recommendation follows from what was found.

Common pier failures

Masonry piers fail in three patterns: settlement (the pier has sunk into softening soil beneath it), tilting (the pier has tipped out of plumb because of differential soil movement), and structural cracking (the pier itself is cracked from age, freeze-thaw cycles, or impact damage). Repair options range from shimming (raising the pier back to grade with steel shims), to rebuilding (removing and recasting the pier), to replacement with helical micropiles where the underlying soil cannot support a new masonry pier.

Common beam failures

Wood beams fail almost exclusively from moisture-driven rot at the points where they rest on piers or where they contact other moisture-bearing materials. Termites and other wood-destroying insects accelerate the failure. Repair replaces the failed beam section with new pressure-treated lumber sized to the original engineering spec, then adds isolation between the new wood and any masonry contact points.

Common joist failures

Joists fail through sagging (excessive deflection from age or undersized original spec), rotting at beam contact points, and termite damage. The standard repair is sister-ing: bolting a new joist of equal or larger size alongside the failed one to share the load. Severe sag is straightened by shoring the floor from below before sister-ing.

Why Crawlspace Moisture Matters

Pier and beam repair work is undone by chronic crawlspace moisture. A new pressure-treated beam installed in a wet crawl can rot within 5 to 8 years. The same beam installed in a properly vapor-barriered and dehumidified crawl lasts indefinitely. Most pier and beam repair quotes either include moisture control (vapor barrier, perimeter drainage, dehumidifier) as part of the scope, or recommend it as a follow-on. See the crawl space repair and encapsulation page for moisture-control specifics.

Pier and Beam vs Slab Foundation Repair

These two methods address fundamentally different foundation types, so the comparison is more about identifying which one the home has than picking between them.

• Pier and beam: home has a ventilated crawlspace below the floor. Vent grates are visible in the exterior masonry near ground level. Floor structure is wood (joists on beams on piers).
• Slab: home sits directly on a concrete pad poured on grade. No crawlspace. No vent grates. Floor structure is the concrete slab itself, typically covered with finished flooring.

For slab-on-grade foundations needing repair, see the slab foundation repair page.

Cost Range and Drivers

Per Bob Vila’s May 2024 cost guide, pier and beam repair runs $700 to $25,000 per project. The wide range reflects scope:

• Single pier shim or rebuild: $700 to $2,500
• Beam replacement (one beam): $2,500 to $7,000
• Joist sister-ing across a sagging section: $1,500 to $5,000
• Multi-component crawlspace overhaul: $10,000 to $25,000

Crawlspace clear-height affects every quote: crawl heights under 18 inches add roughly 30 percent to labor cost because installers cannot work upright.

Project Timeline

Most pier and beam repair projects take 2 to 5 days. A simple single-pier shim and a beam-section replacement can both be one-day jobs. A comprehensive crawlspace structural overhaul with multiple beams, pier rebuilds, joist sister-ing, and moisture control installation runs the full 5 days.
